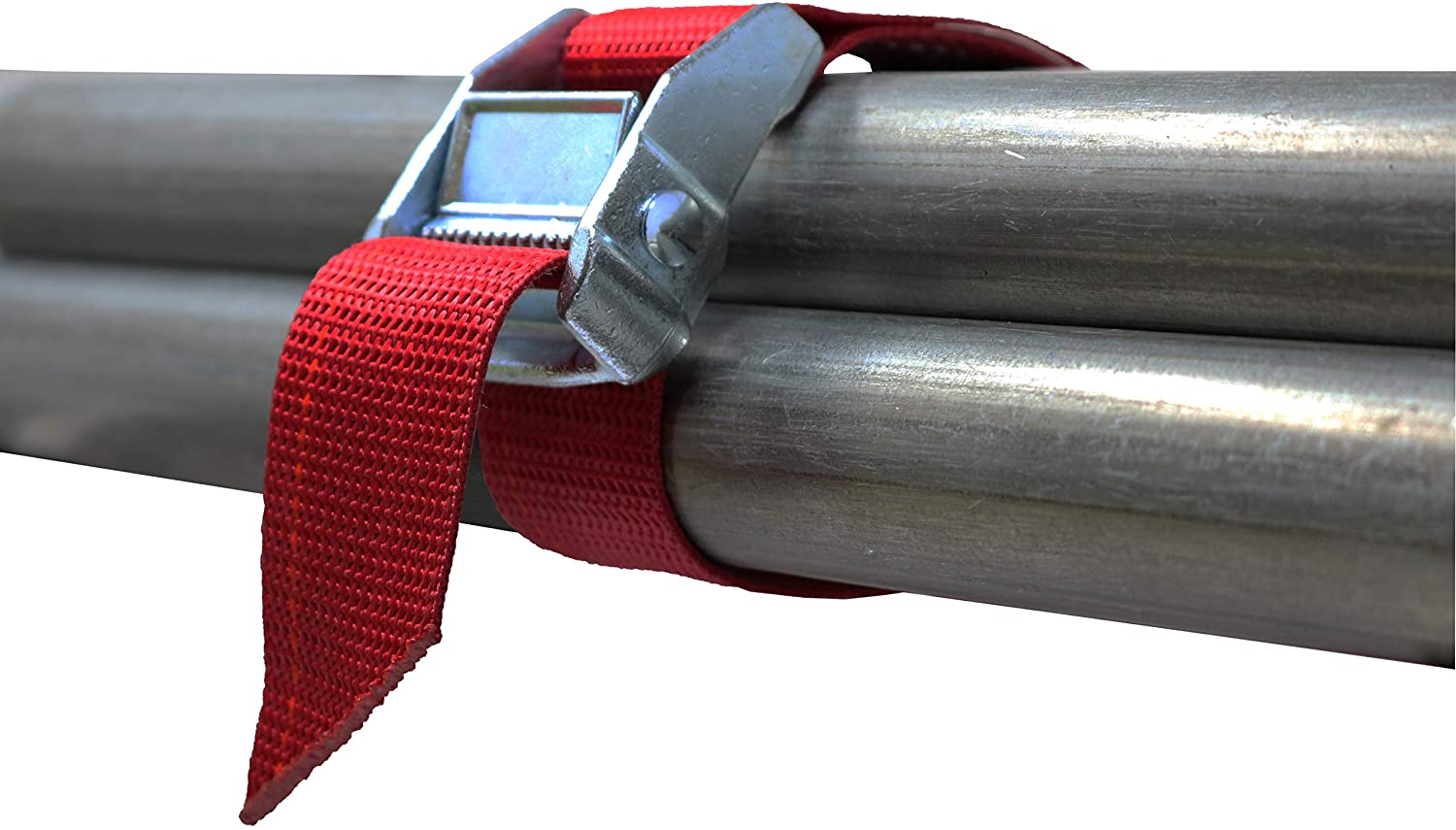

Cam buckle tie down strap also known as cargo lashing belt, are available in large variety of configurations of different sizes, colors, cam buckles and end fittings. Used mostly for motorcycle, estate car, light vehicle and other situation. Endless straps with cam buckle are an excellent tightening system because pulling the strap rather than ratcheting like with a ratchet strap lessens the chance of damaging cargo. Endless straps work by wrapping the strap around the cargo then feeding the webbing back through the assembly. Suitable for road, railway, sea, air transportation. Made from 100% polyester with high strength, low elongation, UV resistant. In temperature -40℃ to +100℃, it’s essential,flexible in operation tool to keep cargo safe.

Welldone tie down strap are manufactured to the highest standards in accordance with EN12195-2, AS/NZS 4380, WSTDA-T-1. All the tie down straps must be tested by tensile test machine before shipping.

Advantage: Sample available(To check quality), Customized design(logo printing, special fittings), Different packaging(Shrink, Blister, Polybag, Carton), Short lead time, Multiple payment method(T/T, LC, Paypal, Alipay).

Specification:

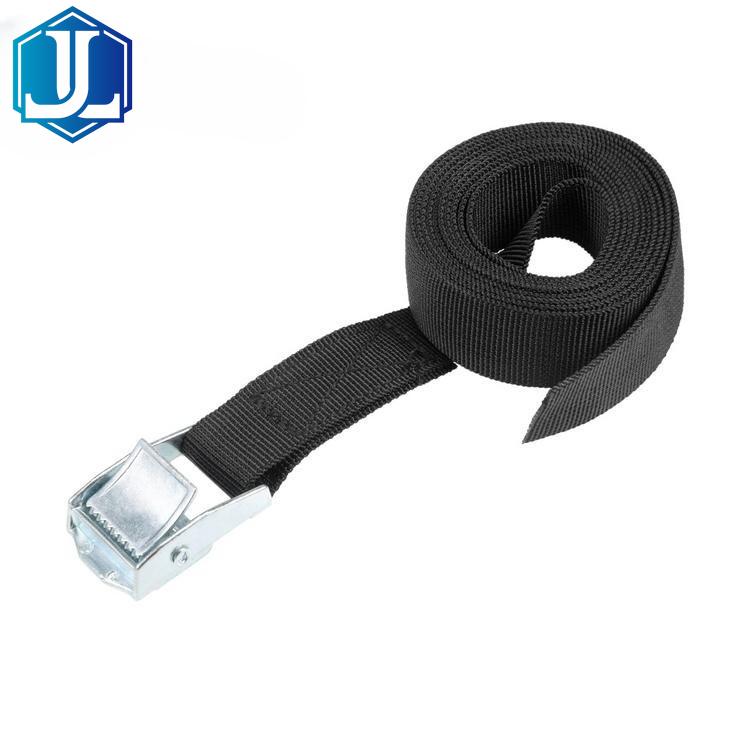

Model Number: JLRS011

Ideal for light haulage, securing light loads on trailers, roof racks, small vans.

• 1-Part System, Zinc alloy cam buckle plus main tension (adjustable) strap, without hook.

• Breaking Force Minimum (BFmin) 500daN (kg)- Strapping Lashing Capacity (Ring LC) 500daN (kg)

• 1200daN (kg) BFmin heavy duty polyester webbing, elongation (stretch) < 7% @ LC

• 2-8m webbing length, fitted with a Pressed cam buckle

• Manufactured and labelled in accordance with EN 12195-2:2001

 If you don’t find the specification you need, please contact us, we will recommend a right one to you.

Cautions:

Never use lashing strap for lifting.

Never use overload.

Do not twist webbing.

Protect the webbing from sharp or abrasive edges.

Periodic inspect the ratchet strap to ensure the tie down or webbing in good condition, or replace it at once.

Applications:

Process & Packing:
