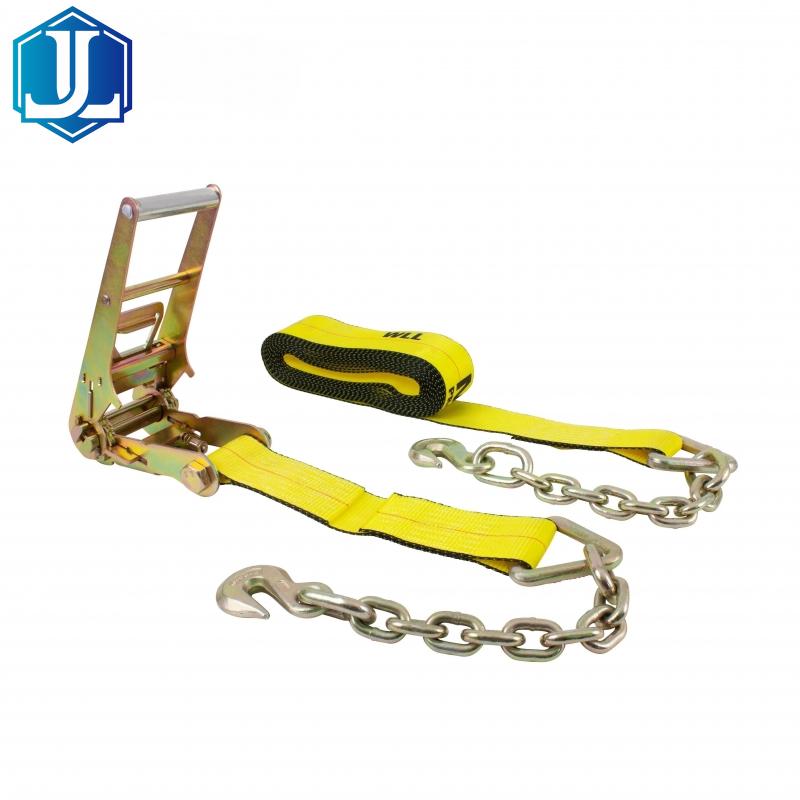

US Type 3″ Ratchet Tie Down Strap with Chain Anchor Extension and Hook WLL 5400LBS


Name:US Type 3″ Ratchet Tie Down Strap with Chain Anchor Extension and Hook WLL 5400LBS
Model Number:JLRS001-3
Width:3inch(75MM)
Length:20-60FT
Load Capacity:5400LBS
Breaking Strength:16200LBS
Surface:Zinc plated/Electrophoretic black
Color:Yellow/Blue/Gray/Black/Green/Red
Handle:Aluminum
Hook type:Chain extension
Inquiry

  • US Type 3″ Ratchet Tie Down Strap with Chain Anchor Extension and Hook WLL 5400LBS

Product Description


Ratchet tie down strap also known as cargo lashing belt, are available in large variety of configurations of different sizes, colors, ratchet buckles and end fittings. Used mostly for motorcycle, estate car, flatbed trailer, van, truck, curtain side vehicle and container. The basic principle is to make the webbing by ratchet and pawl movement. It is gradually wound on the half-moon key of the hand puller, so that the cargo on the truck will be tightly bundled to achieve the purpose of safe transportation. Suitable for road, railway, sea, air transportation. Made from 100% polyester with high strength, low elongation, UV resistant. In temperature -40℃ to +100℃, it’s essential,flexible in operation tool to keep cargo safe.

All Welldone ratchet tie downs are labeled with their working load limit to meet CVSA guidelines, DOT regulations, and WSTDA, CHP & North American Cargo Securement standards. When protecting your valuable items for transit, tie down with confidence using a quality, reliable ratchet strap from Welldone. All the ratchet straps must be tested by tensile test machine before shipping.

Advantage: Sample available(To check quality), Customized design(logo printing, special fittings), Different packaging(Shrink, Blister, Polybag, Carton), Short lead time, Multiple payment method(T/T, LC, Paypal, Alipay).

Specification:

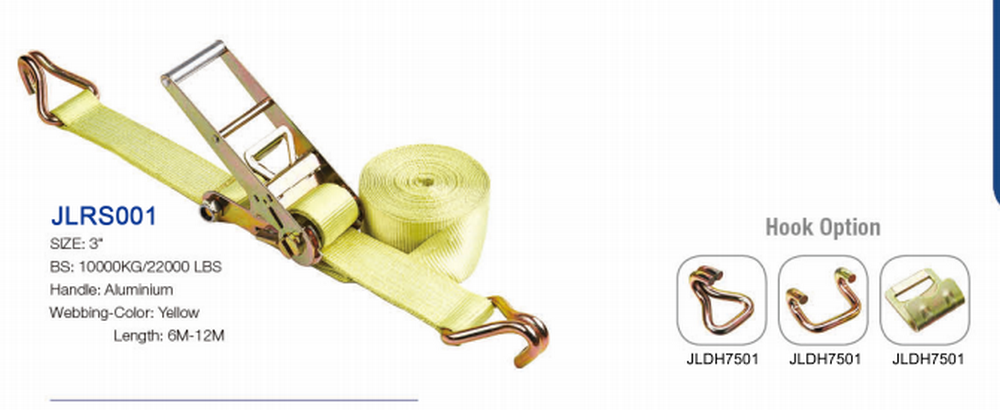

Model Number: JLRS001-3

This 3″ ratchet strap with chain and hooks has the ability to take on heavy-duty loads for you. This chain extension ratchet strap can be used as a heavy equipment ratchet strap. The 3″ width of the strap offers you strength, and the durable polyester webbing can help keep your load secure. This commercial ratchet strap has chain and hook end fittings. Each end of this chain tie down has a grade 70 chain anchor and clevis hook in a 3/8″ size. The hooks can easily go into side rails, D-rings, rub rails, and more. This 3″ cargo strap is found in a 30’ length, but other lengths and custom options are available. Contact our sales staff to learn more.

  • 2-Part System, comprising ratchet with fixed end plus main tension (adjustable) strap, both terminating in chain extension.

  • Working Load Limit:5400lbs

  • Assembly Breaking Strength:16200lbs

  • Standard Tension Force (STF) 500daN (kg) – using a Standard Hand Force (SHF) of 50daN (kg)

  • 1′ fixed end (tail), fitted with a Wide Handle Ratchet

  • Manufactured and labelled in accordance with WSTDA-T-1



Other sizes manufactured to order.

Wear sleeves or corner protectors are recommended to protect the webbing straps.

Consider using with friction mats to increase the friction coefficient between the load and the vehicle floor.



Cautions:


Never use lashing strap for lifting.

Never use overload.

Do not twist webbing.

Protect the webbing from sharp or abrasive edges.

Periodic inspect the ratchet strap to ensure the tie down or webbing in good condition, or replace it at once.



WSTDA-T-1 ratchet strap specification.jpg

Applications:



Process & Packing:
