619S+FC 619S+IWR 619W+FC 619W+IWR Galvanized Steel Wire Rope
| Name: | 619S+FC 619S+IWR 619W+FC 619W+IWR Galvanized Steel Wire Rope |
| Customization: | Available |
| Material: | Steel |
| Tensile Strength: | 1570-1960Mpa |
| Diameter: | 12-40MM |
| Color: | Silver |
| Surface: | Galvanized or natural color |
| Standard: | DIN3060/EN12385-4 |
| Contact: | Line contact |
| Transport Package: | Plywood wheel/Coil/Carton/Pallet |
| Production Capacity: | 1000000PCS/Year |
| Trademark: | JL, OEM Customized |
| Origin: | Zhejiang, China |
| Inquiry |
Product Description

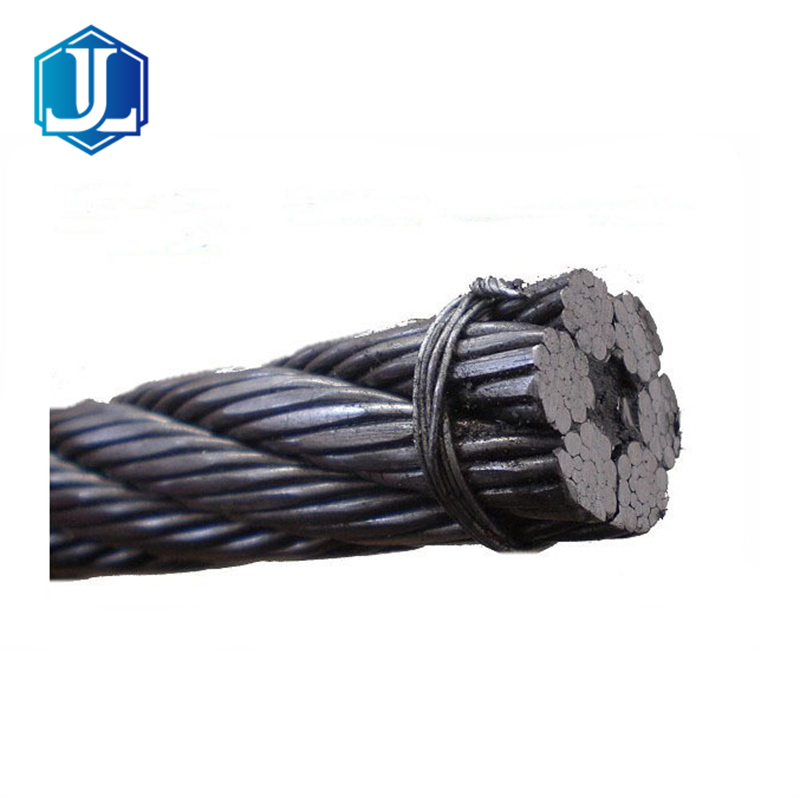

The 6×19 construction steel wire rope is one of the most commonly used types of wire rope, offering an excellent balance between strength, flexibility, and abrasion resistance. The rope consists of 6 strands, each made up of 19 wires, with variations in strand design:

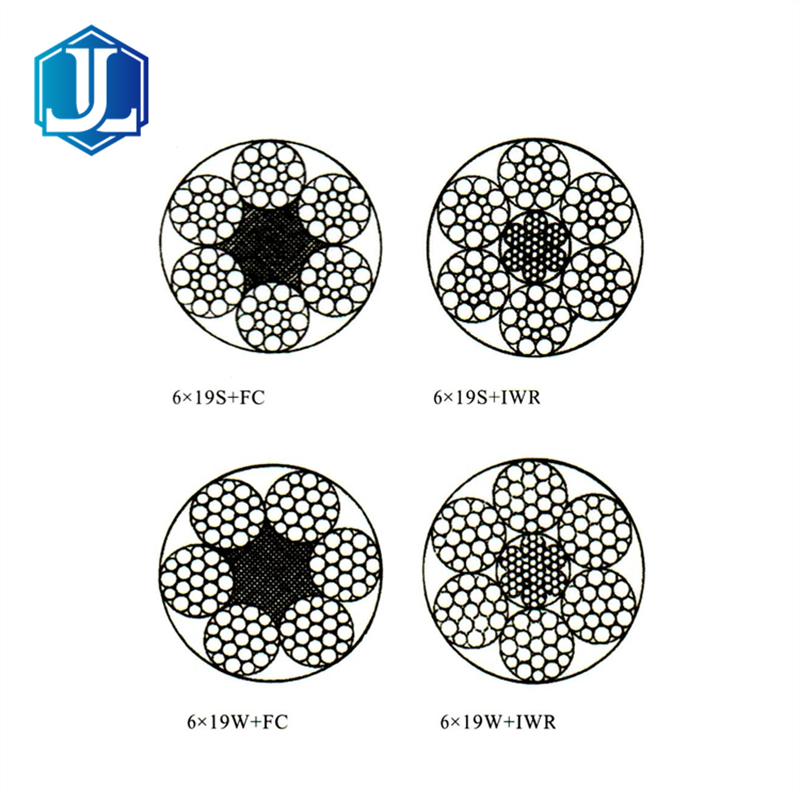

6×19S: Standard strand construction with symmetrical wire arrangement.
6×19W: Warrington construction with alternating large and small wires for improved wear resistance.
The rope core options are:
FC (Fiber Core): Provides greater flexibility, shock absorption, and ease of handling.
IWR (Independent Wire Rope Core): Offers higher strength, better resistance to crushing, and longer service life under heavy loads.

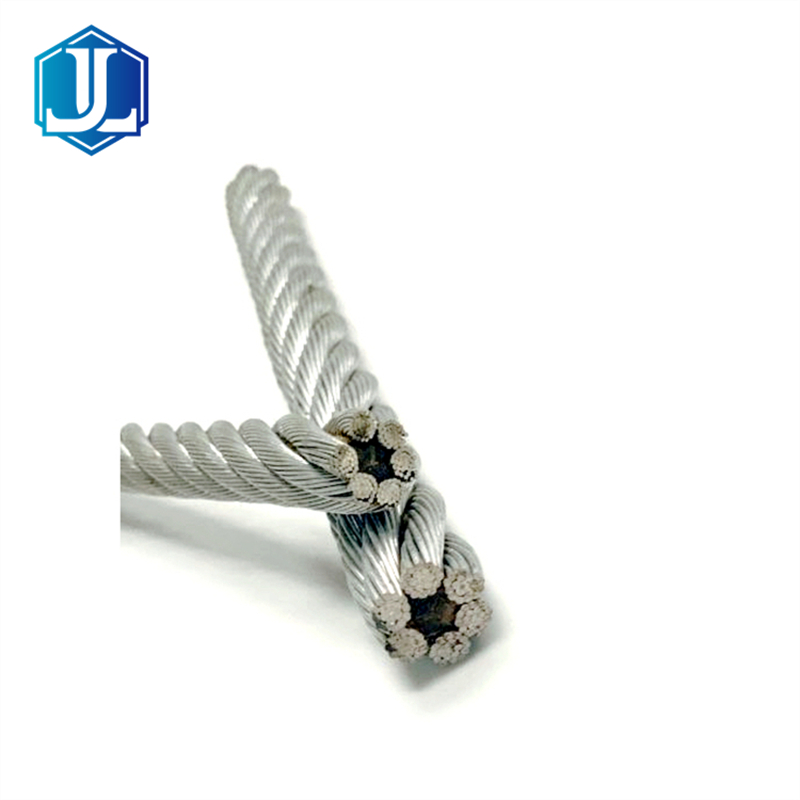

Galvanization gives the rope excellent resistance to corrosion, making it suitable for outdoor and marine applications.

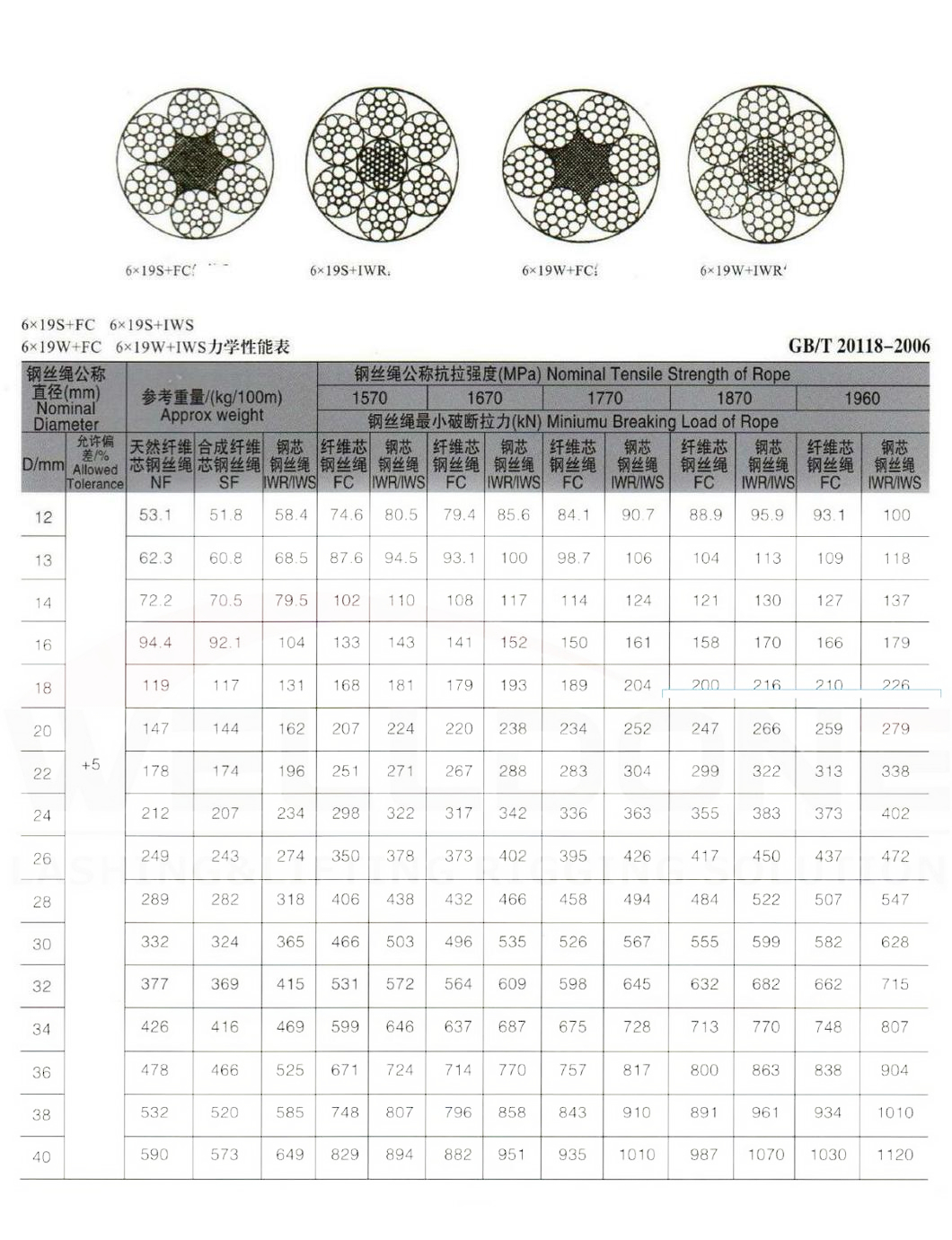

Specification:

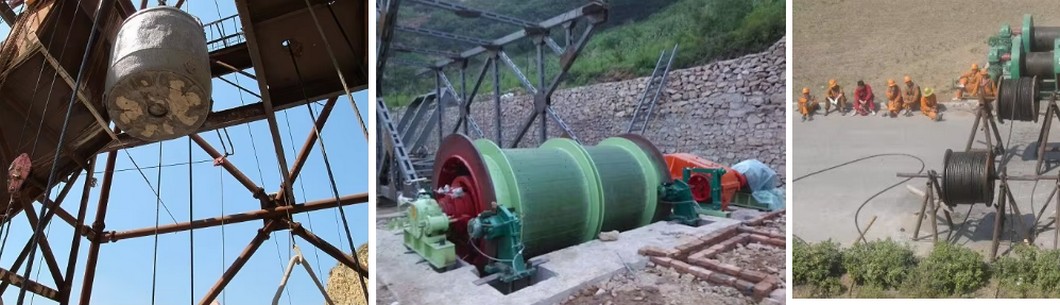

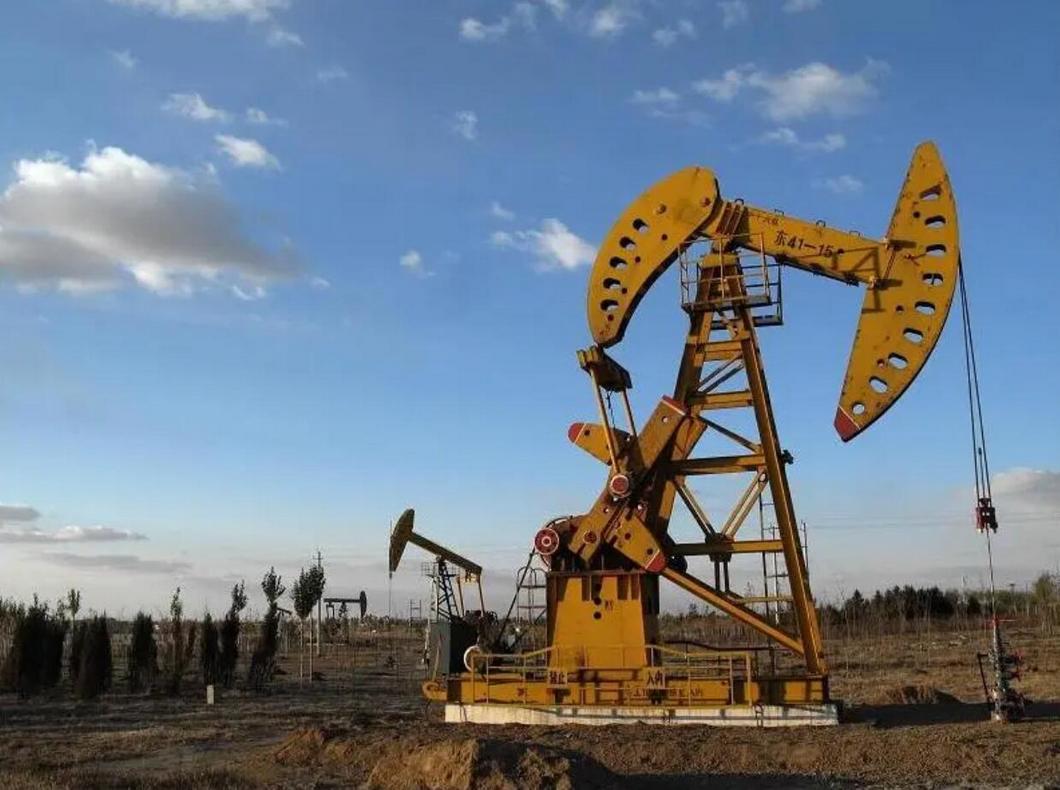

Applications:
Process & Packing:
