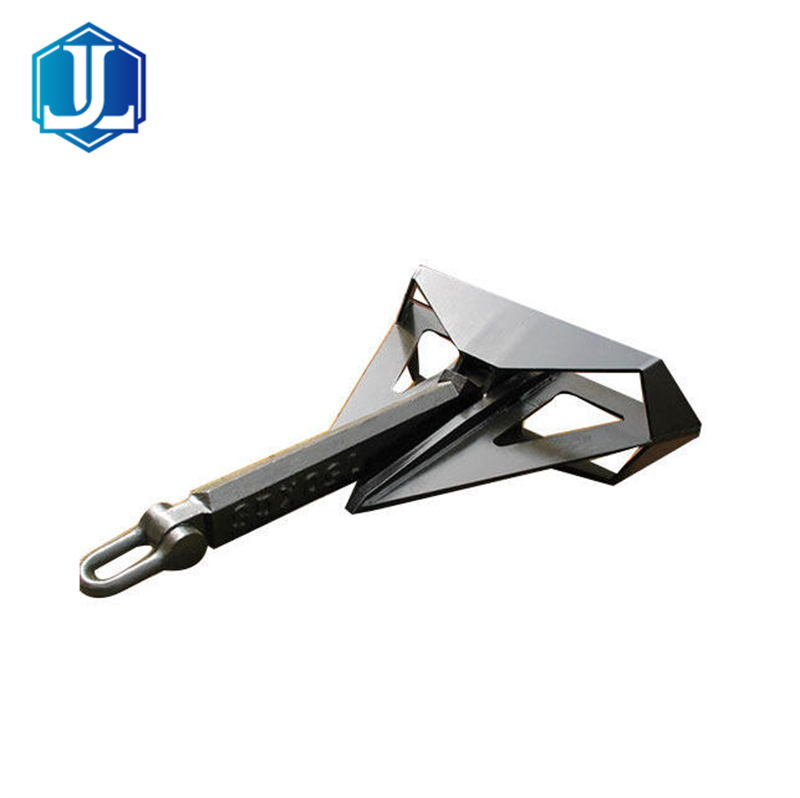

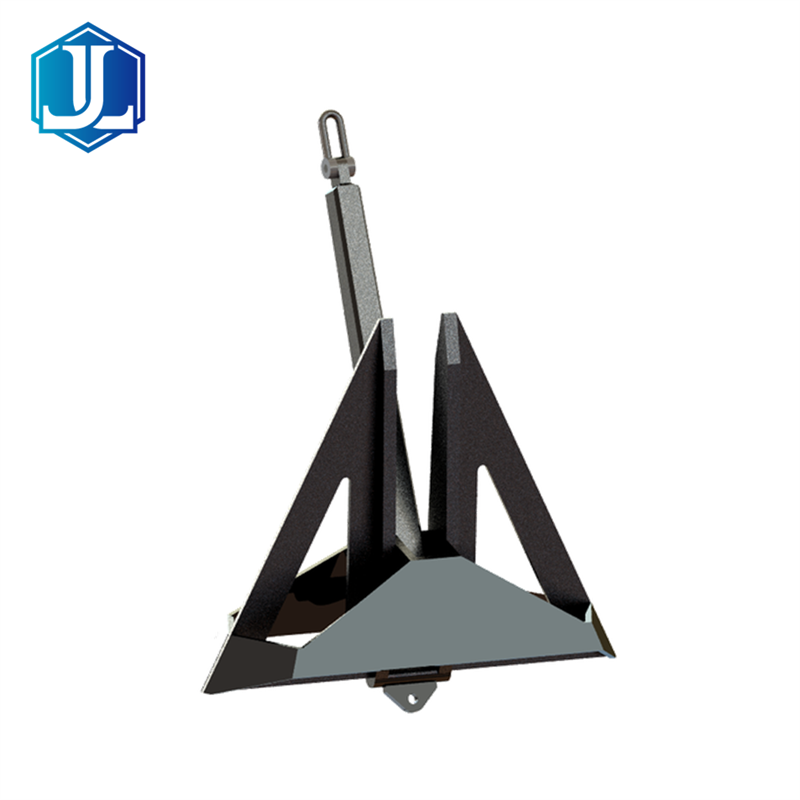

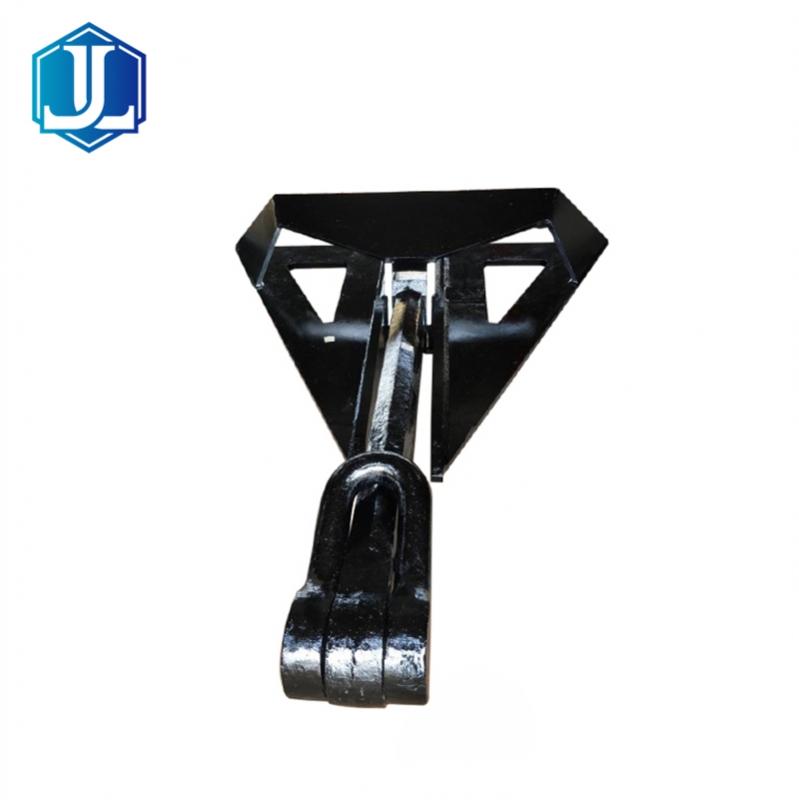

The High Holding Power (HHP) Welded Fin-type Delta Anchor, also referred to as the Flipper Delta Anchor, is a robust marine anchoring solution designed for demanding offshore and mooring applications. Leveraging a welded, triangular (delta) design, this anchor offers superior holding capabilities and reliability.

Key Features

• Welded Delta Structure
  The anchor head is constructed from high-strength steel plates through welding, while the shank (anchor rod) is usually cast. This hybrid design enhances the anchor's strength and durability.

• High Holding Power & Efficient Penetration
  Engineered for exceptional holding efficiency, the open delta structure enables smooth and rapid seabed penetration with minimized drag. It delivers high holding force relative to its weight.

• Wide Weight Range & Certifications
  Available in a broad weight spectrum, typically from 300 kg up to 25,000 kg (and even beyond, up to 100,000 kg in some offers) to suit various vessel sizes and applications. Commonly certified by major classification societies, including DNV-GL, ABS, BV, LR, NK, CCS, RINA, IRS, KR, RS, and more.

• Wide Application Scope
  Commonly used as bow anchors for ships and essential components of mooring systems for offshore platforms, dredging operations, and marine aquaculture installations.

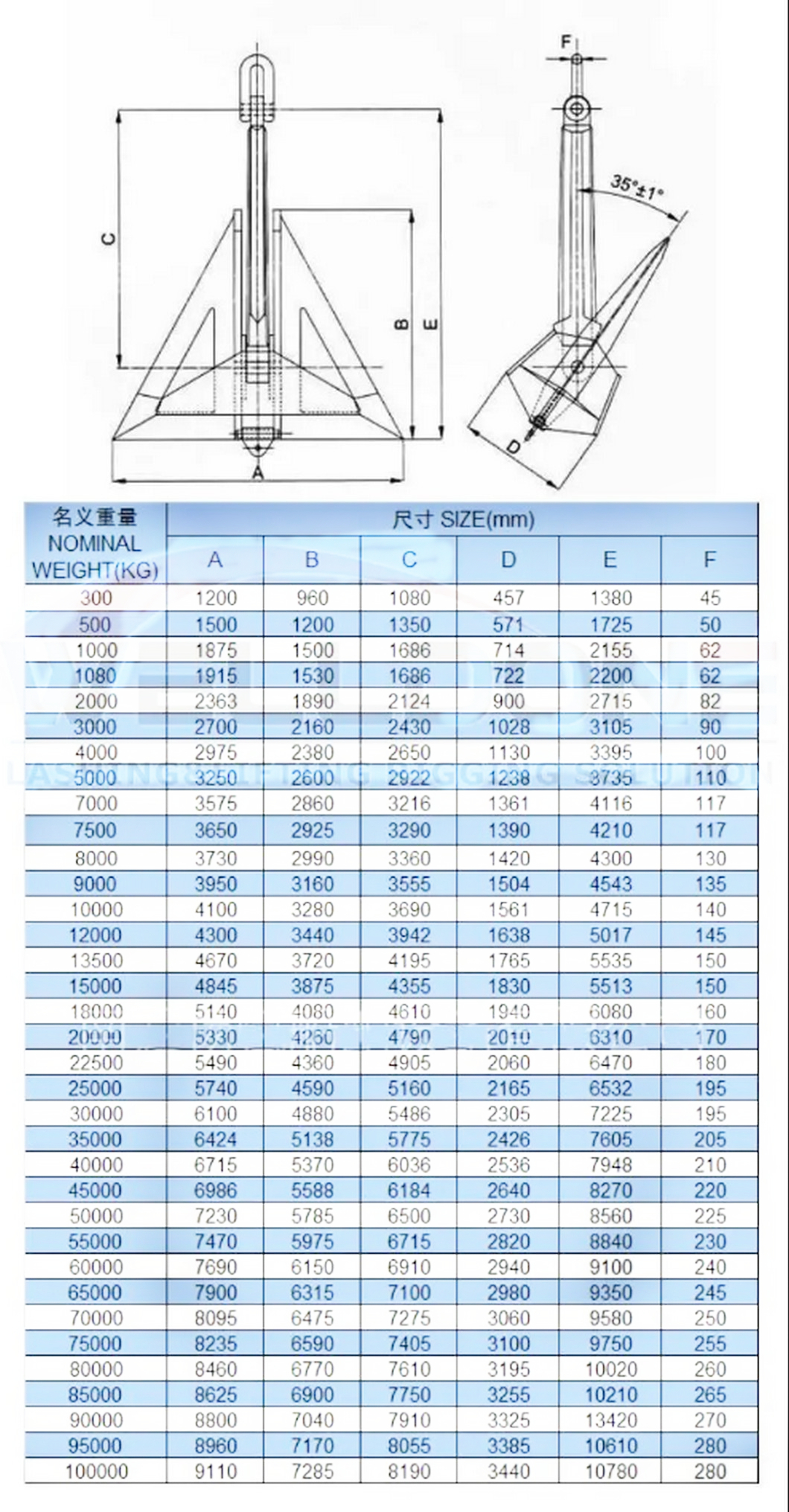

Specification:

Applications:

Process & Packing:
