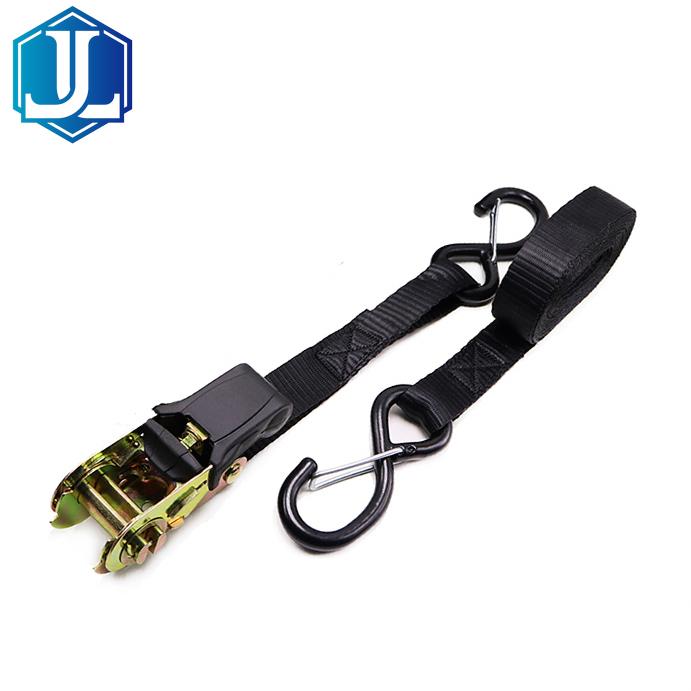

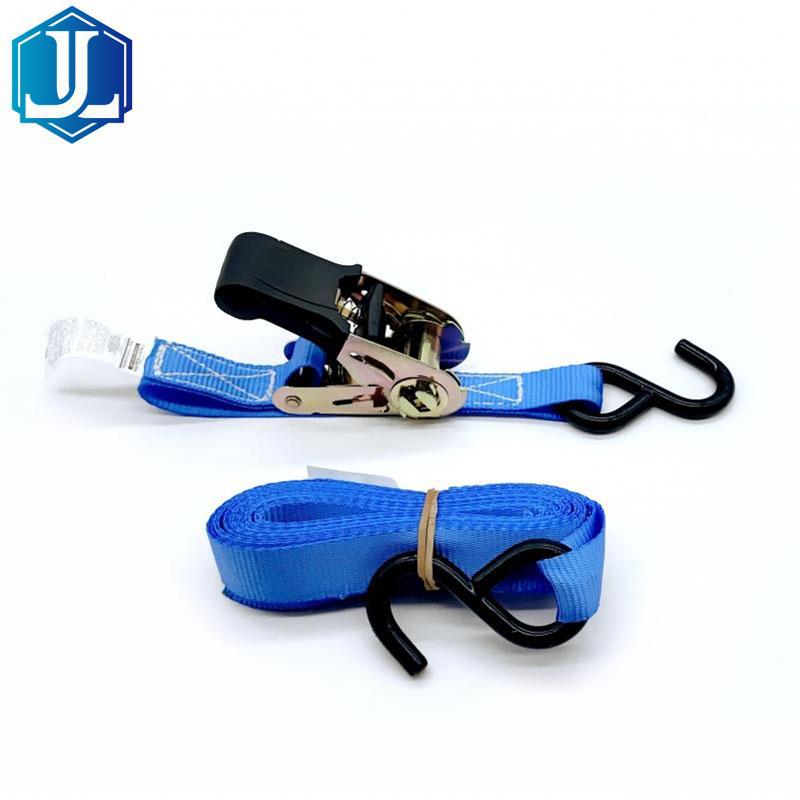

1″ 25MM 800KG Rubber handle Ratchet Tie Down Strap with hook


Name:1″ 25MM 800KG Rubber handle Ratchet Tie Down Strap with hook
Model Number:JLRS010
Width:25MM(1inch)
Length:2-9M
Load Capacity:400daN
Breaking Strength:800daN
Surface:Zinc plated/Electrophoretic black
Color:Yellow/Red/Orange/Blue/Green/White/Black
Handle:Rubber
Inquiry

  • 1″ 25MM 800KG Rubber handle Ratchet Tie Down Strap with hook

Product Description


Ratchet tie down strap also known as cargo lashing belt, are available in large variety of configurations of different sizes, colors, ratchet buckles and end fittings. Used mostly for motorcycle, estate car, flatbed trailer, van, truck, curtain side vehicle and container. The basic principle is to make the webbing by ratchet and pawl movement. It is gradually wound on the half-moon key of the hand puller, so that the cargo on the truck will be tightly bundled to achieve the purpose of safe transportation. Suitable for road, railway, sea, air transportation. Made from 100% polyester with high strength, low elongation, UV resistant. In temperature -40℃ to +100℃, it's essential,flexible in operation tool to keep cargo safe.


Jingli tie down strap are manufactured to the highest standards in accordance with EN12195-2, AS/NZS 4380, WSTDA-T-1. All the ratchet straps must be tested by tensile test machine before shipping.


Advantage: Sample available(To check quality), Customized design(logo printing, special fittings), Different packaging(Shrink, Blister, Polybag, Carton), Short lead time, Multiple payment method(T/T, LC, Paypal, Alipay).


Specification:


Model Number: JLRS016


Ideal for light haulage, securing light loads on trailers, roof racks, small vans.

  • 2-Part System, comprising ratchet with fixed end plus main tension (adjustable) strap, both terminating in Double J / Single J / S hooks

  • Breaking Force Minimum (BFmin) 800daN (kg)- Lashing Capacity (LC) 400daN (kg)

  • 1200daN (kg) BFmin heavy duty polyester webbing, elongation (stretch) < 7% @ LC

  • Standard Tension Force (STF) 150daN (kg) – using a Standard Hand Force (SHF) of 50daN (kg)

  • 0.3m fixed end (tail), fitted with a Pressed Handle Ratchet

  • Manufactured and labelled in accordance with EN 12195-2:2001


Powerful Ratchet Tensioner.

Other sizes manufactured to order.

Webbing available in alternative colours, please ask for details.

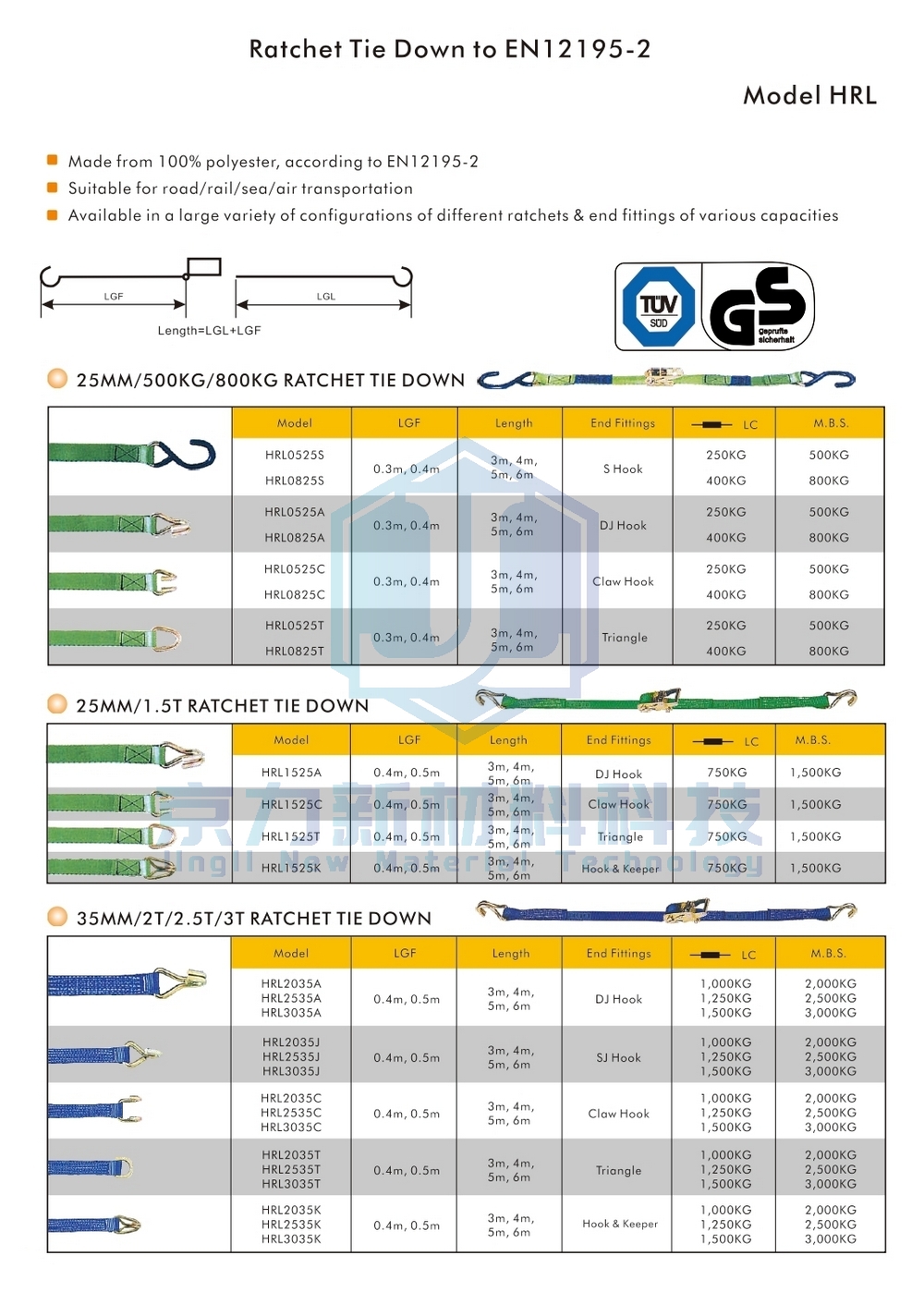

EN12195 ratchet strap specification01.jpg

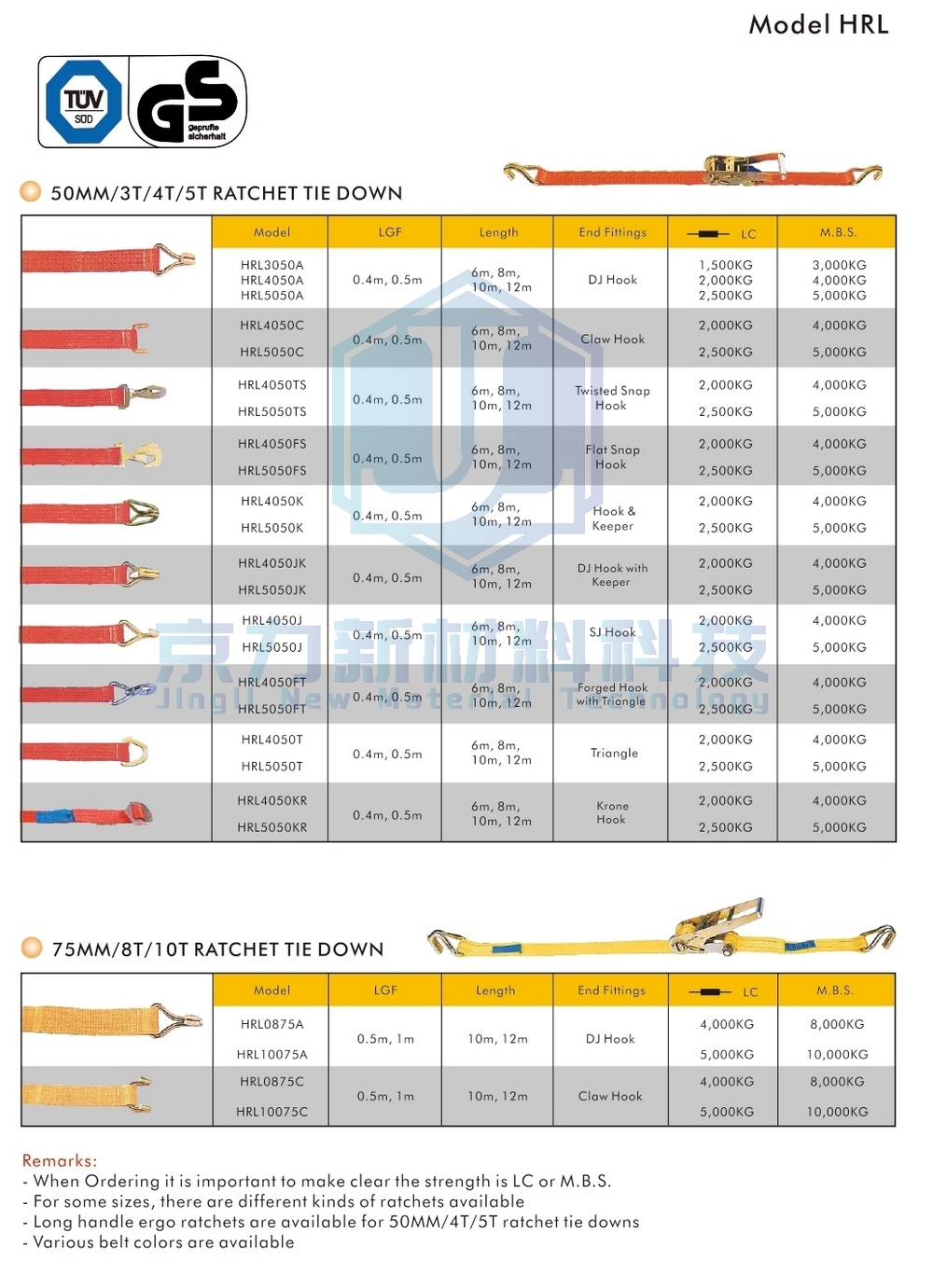

EN12195 ratchet strap specification02.jpg

Cautions:


Never use lashing strap for lifting.

Never use overload.

Do not twist webbing.

Protect the webbing from sharp or abrasive edges.

Periodic inspect the ratchet strap to ensure the tie down or webbing in good condition, or replace it at once.

Applications:



Process & Packing:
